Turbo matching begins with the target crank horsepower and engine displacement. A correctly sized engineering machinery turbocharger must deliver the airflow and pressure ratio. Gather the machine's basics: max horsepower at rated RPM, peak torque RPM, displacement, fuel type, and duty — continuous loads or sudden surges. Record the target power — the horsepower target at rated RPM; this target horsepower drives later choices. Engineering machinery engines sustain high load at low RPM in high ambient heat and dust; durability and response outweigh peak power. These horsepower and displacement figures set the operating window; match each selection against them. Next: drivetrain loss math, engine-specific adjustments, single versus twin turbo choices, and compressor map validation.
Turbo matching on engineering machinery begins with a single, verifiable number: target crank horsepower. Wheel horsepower cannot anchor the calculation because the drivetrain consumes energy before the wheels move. An engineer needs this crank horsepower value as the airflow benchmark.

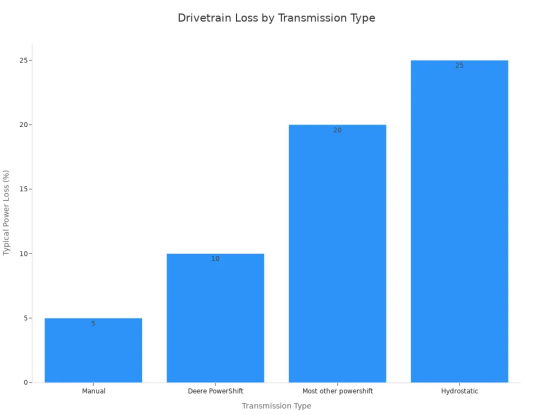

Drivetrain losses vary by transmission type. Manual units lose roughly 5 percent. Deere PowerShift transmissions lose about 10 percent. Most other powershift designs lose close to 20 percent. Hydrostatic units lose about 25 percent. These figures come from measured PTO and drawbar tests on agricultural tractors. They apply directly to construction machines with similar transmission architecture.
Transmission Type | Typical Power Loss |
Manual | ~5% |
Deere PowerShift | ~10% |
Most other powershift | ~20% |
Hydrostatic | ~25% |
Construction machine dyno testing rarely provides wheel horsepower data on-site. Operators and service teams rely on the engine manufacturer’s published flywheel curve. That curve represents crank horsepower, so engineers skip drivetrain correction when using it. When only wheel measurements exist, applying the correct loss factor is essential.
Consider a wheel loader showing 250 horsepower at the hub. With a 15 percent drivetrain loss, the engine delivers approximately 294 horsepower at the crank. That crank horsepower target anchors every later turbocharger choice. An accurate drivetrain loss value prevents catastrophic undersizing.
With horsepower at the crank confirmed, the next step links power to air demand. Turbocharger matching for engineering machinery requires horsepower and engine displacement as inputs. The airflow equation multiplies engine displacement in cubic inches by the max engine rpm and the engine volumetric efficiency. The engineer divides that total by 3456. The 3456 constant covers the cubic inches per cubic foot and the two-stroke intake cycle. This formula applies to four-stroke engines only; two-stroke diesels need a different constant.
A modern turbo diesel sustains 85 to 90 percent volumetric efficiency. A 350-cubic-inch engine spinning 2,000 rpm at 85 percent VE delivers roughly 172 CFM. This value represents pre-turbo airflow. Expressing engine displacement measured in liters remains common in specifications; convert to cubic inches before applying the formula.
The engineer then shifts the airflow figure from CFM to pounds per minute. Standard sea-level air density makes this conversion possible. Garrett references 0.076 lb/ft³. Banks Power states the same value as 76.4 lb per 1,000 cubic feet. At this density, 36 lb/min of airflow equals about 520 CFM.
The airflow value, combined with the required boost, determines the pressure ratio. The engineer must match the turbocharger to this airflow and boost point. Turbocharger selection for engineering machinery requires plotting the calculated point on a compressor map. That point must stay inside the efficiency island and clear of the surge line. Proper turbo matching also accounts for the machine’s duty cycle.
A clear target horsepower and a measured engine displacement lock down the operating window. The target horsepower must reflect the engine’s rated RPM and peak torque demand. No horsepower target survives without accurate drivetrain data. The matching process becomes methodical once these inputs resolve. Horsepower and displacement anchor every subsequent estimate. A misunderstanding of horsepower and displacement destroys the entire selection. The target power also shapes turbo architecture. Knowing how to match a turbocharger to an engine means understanding the full load cycle. The right turbocharger for engineering machinery must survive high ambient temperatures and sustained load.
Engine displacement equals the total air capacity. Horsepower and displacement define an initial search region, not the final turbo. Internal engine characteristics narrow the selection further. Turbo matching must honor valve events, fuel quality, and exhaust energy.
Valve overlap duration controls how much fresh air enters the cylinder. A long overlap period scavenges the combustion chamber and cools the exhaust valve. That scavenging improves volumetric efficiency. It also steals energy from the turbine. A shorter overlap period delivers full exhaust energy to the turbine and builds boost quickly. The engineer must match the turbo to the engine programmer’s overlap choice.
Boost limit sets the maximum pressure ratio. Most engines have a hard mechanical ceiling. High compression diesels raise peak cylinder pressure. Too much boost creates detonation or cracked pistons. The turbine wheel must stay inside that limit. Exhaust temperature places an equally strong constraint. Hot gases carry more energy but cause thermal stress. Many heavy-duty turbos use high-strength alloy housings and wheels for that reason. The exhaust side must survive the worst continuous operating temperature.
BSFC, or brake specific fuel consumption, converts a horsepower target into fuel demand. Diesel engines typically fall between 0.35 and 0.45 pounds per horsepower-hour. Gasoline engines show higher values. The engineer selects the value appropriate for the machine’s duty cycle, then applies it to the target horsepower.
Consider a diesel engine producing 294 crank horsepower with a BSFC of 0.40. Hourly fuel consumption equals 294 multiplied by 0.40, giving 117.6 lb. Multiplying that figure by the air/fuel ratio yields airflow in pounds per hour. Diesel engines run lean, well above stoichiometric. Dividing by 60 gives pounds per minute. This number must agree with the earlier displacement-based estimate. A wide gap means a wrong target or a worn engine. A tired engine also shows reduced volumetric efficiency.
Gasoline and dual-fuel machines complicate turbocharger selection for engineering machinery. Gasoline engines burn near stoichiometric. They demand more air per horsepower than diesels do. Dual-fuel machines switch between compressed gas and diesel modes. Their fuel flow changes with the mode. Engineers pick the highest BSFC observed across all modes as the design point. That choice protects the turbo during every operating condition. Combining horsepower and engine displacement sets the initial window. The compressor map validates the final result.
Construction work demands rapid power changes. An excavator digs into dense clay, then lifts a full bucket, then swings and dumps the load. Each phase creates a sudden load surge. The engine must deliver low-speed high-torque instantly. A turbocharger with a narrow efficiency range cannot respond fast enough. The operator feels turbo lag, and productivity drops.
A variable geometry turbocharger (VGT) solves this problem. The vanes adjust to maintain boost across the entire rpm band. A fixed-geometry turbo with a wide efficiency island also works well. Both options keep intake pressure high during digging, hoisting, and loading. This balance between low-end response and top-end airflow defines successful turbo matching for engineering machinery.
High altitude reduces air density. A machine working at 3,000 meters receives less oxygen per intake stroke. The turbocharger must spin faster to deliver the same pressure ratio. High ambient temperatures create a similar challenge. Continuous load compounds both effects. The turbine housing and wheel endure constant thermal stress.
Kaidi Engineering Machinery Turbochargers address these conditions directly. High-strength alloy materials resist extreme vibration and heat. Enhanced bearing systems handle heavy mechanical impact. Optimized combustion boost reduces fuel consumption and exhaust emissions. These engineering machinery turbocharger units support excavators, wheel loaders, bulldozers, and road rollers across global engine platforms. Proper turbocharger selection for engineering machinery considers the worst-case duty cycle, not the average one. A turbo match that ignores altitude or continuous load will fail early. The right turbocharger for engineering machinery delivers stable power through every shift.
Engine displacement and duty cycle narrow the field. Single turbo systems offer simplicity for smaller engines with moderate boost targets. The installation occupies less space, and piping stays straightforward. Many wheel loaders run this arrangement without issue.
Twin and two-stage configurations distribute boost across the operating range. A smaller high-pressure stage builds boost quickly at low RPM. A larger low-pressure stage delivers top-end airflow. Heavy excavators benefit from this split. Engineers choose a turbo architecture that fits the engine bay and duty pattern.
The turbine side drives the first decision. The turbine housing A/R ratio controls exhaust energy collection. A smaller A/R spools quickly but chokes at high airflow. A larger A/R supports top-end power but delays response. Engine bays on construction machinery leave little room for extra piping. Measuring available space prevents costly redesigns.
Selection for engineering machinery must prioritize the machine's duty cycle. A digger cycling between idle and full load needs fast-transitioning forced induction. A crusher running steady-state tolerates a larger unit. Both scenarios demand the correct turbo for your engine's operating band.
Two-stage systems split the total compression work. Each stage handles a lower individual compression load. The table below shows one example of that division.
Stage | Pressure Ratio | Inlet Pressure | Outlet Pressure |
Low-pressure turbo | 2.0 | Atmospheric (15 psi absolute) | 30 psi absolute (15 psi boost) |
High-pressure turbo | 2.0 | 30 psi absolute (output of low-pressure turbo, minus intercooling losses) | 60 psi absolute (45 psi boost) |
Mass flow stays constant through both stages. CFM decreases as pressure rises. Engineers begin two-stage matching with the turbine system, then the compressor side. Each stage's compressor map validates its operating point. Engineers plot the two stages and verify the match before purchase.
Selecting the correct turbo requires this layered analysis. A single turbo forcing 45 psi runs one compressor outside its efficient range. Dividing the compression loads across two stages keeps hardware healthy. Proper engineering machinery turbocharger selection delivers strong digging force without sacrificing fuel economy.
A compressor map shows the operating range of a turbocharger. Engineers use this chart to verify that a candidate unit delivers the required airflow without entering dangerous regions. The map plots corrected airflow on the horizontal axis and pressure ratio on the vertical axis. Efficiency islands show where the compressor operates best.
The engineer takes the airflow figure from earlier calculations and the target pressure ratio. At sea level, atmospheric pressure is approximately 14.7 psi. A boost of 15 psi is measured above atmospheric pressure, so the total absolute pressure is about 14.7 + 15 = 29.7 psi. The pressure ratio is therefore 29.7 / 14.7 ≈ 2.02, or roughly 2:1. This point must fall inside the efficiency islands and to the right of the surge line.
The surge line and choke line define the map boundaries.
Boundary | Location on Compressor Map | Meaning |
Surge line | Left-hand boundary | Represents the maximum pressure the turbocharger can produce while flowing the least amount of air mass |
Choke line | Right-hand boundary | Represents the maximum amount of air the compressor side can flow (opposite of surge) |
Engineers avoid the outer edges of the map. Operating near the surge line risks compressor surge and damage. Operating near the choke line risks overspeed and reduced efficiency. The ideal operating point sits comfortably inside the map.
Corrected airflow accounts for inlet conditions that differ from standard reference conditions. SCFM represents airflow corrected to standard reference conditions (68°F, 14.696 psia, 36% relative humidity). ACFM is the actual volumetric flow at the compressor's real inlet temperature, pressure, and humidity. Hotter, more humid, or higher-altitude air is less dense, so ACFM drops relative to SCFM. A machine rated 100 SCFM may deliver only 85–92 ACFM on a hot humid day, and the gap widens at altitude. When sizing equipment, demand should be summed in SCFM, then derated for site altitude, temperature, and humidity so the delivered ACFM still covers the requirement.
After plotting the operating point, engineers validate the selection with manufacturer data. Several tools simplify this step. Boost Adviser provides turbo matching calculations for various engine platforms. BorgWarner MatchBot offers similar functionality with BorgWarner-specific data. Most turbocharger manufacturers supply selection software that incorporates their compressor maps and turbine data.
These tools help engineers correctly size a turbo without manual map reading. They also flag potential issues such as surge risk or excessive pressure ratio. However, software predictions require real-world confirmation. Engineers should complete testing and data logging after installation. Boost pressure, exhaust gas temperature, and airflow data reveal whether the turbocharger performs as predicted. Fine-tuning the final match may involve adjusting the wastegate setting or selecting a different turbine housing A/R ratio.
Properly selecting the right size turbocharger requires patience and verification. Turbo matching for engineering machinery demands attention to altitude, temperature, and duty cycle. A compressor map confirms the theoretical match. Real-world testing confirms the practical result. Together, these steps ensure reliable performance in demanding construction environments.
Set the horsepower target first. Convert wheel figures to horsepower at the crank using drivetrain loss. That crank horsepower target anchors the matching process. Crank horsepower drives every later choice. Account for fuel type and engine characteristics. Match response to duty cycle. Choose single or twin architecture. Validate on a compressor map. Verify with Boost Adviser or manufacturer software before purchasing.

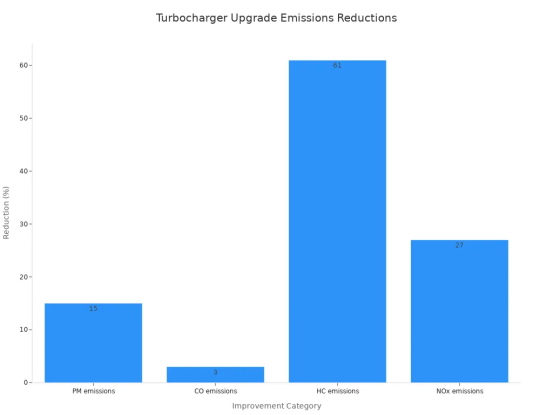

A properly matched engineering machinery turbocharger delivers gains. An EPA-verified Caterpillar upgrade kit reported 15% lower PM, 61% lower HC, and 27% lower NOx emissions, plus lower fuel consumption.
Matching is not about picking the biggest unit. It means choosing the correct unit for your engine's operating range and workload.
