The engine screams as a fully loaded semi-truck claws its way up a steep grade. The engine runs at full capacity for hours. What allows the heavy-duty diesel turbochargers to survive and perform under this constant strain? Each turbocharger handles high load through four key mechanisms. It delivers increased airflow for complete combustion. Precise boost control maintains peak efficiency. Robust thermal management protects against extreme heat. The heavy duty turbocharger factory uses durable materials to ensure long-term power output. This coordinated approach guarantees reliable performance. The design of a commercial diesel turbocharger directly supports these intense operational demands.
Diesel engines under heavy load require more air for complete combustion. A turbocharger harnesses kinetic energy from exhaust gases to drive a compressor. This action increases intake air density directly. More oxygen lets the engine burn more fuel, generating greater power and torque. Turbocharging also improves fuel efficiency and reduces emissions.
Turbocharging creates higher brake mean effective pressure. This moves the diesel engine into a more efficient zone. Under light and medium conditions, thermal efficiency improves significantly. At 50 percent to 100 percent operating range and 1,000 RPM or higher, efficiency can exceed 38 percent. This delivers more power output from the same fuel.
Managing intake air temperature is critical. Turbocharging heats the air considerably. With 60 degree Fahrenheit inlet and 70 percent turbocharger efficiency, the outlet reaches 308 degrees. Without cooling, hot air reduces density and limits performance. Charge air coolers transfer this heat. With a 90 percent effective intercooler and 50 degree ambient, charge temperature drops to 76 degrees. Cooled, dense air allows more torque.
Intake air temperature tends to run about 20 degrees warmer than outside temperature. Underhood heat alters ambient conditions. Effective intercooling remains essential for sustained engine operation.
More airflow means more fuel can burn. This generates greater torque and power while boosting performance. Heavy-duty diesel engines need sustained airflow under constant demand. A properly sized turbocharger maintains boost across the engine speed range.
For 10 liter to 15 liter engine capacity, the diesel turbocharger is designed specifically for these demands. Kaidi heavy-duty road commercial turbochargers handle long-haul transport. They are compatible with Cummins, Volvo, Detroit, PACCAR, Mack, and Mercedes-Benz. These units deliver reliable performance under heavy demands and steep climbs.
A turbocharger's ability to maintain optimal airflow affects engine efficiency directly. At highway speeds with a loaded trailer, the engine needs consistent air supply. Modern turbocharger control systems eliminate power lag and improve overall performance. Precise air control enables complete combustion, reducing emissions and supporting durability.
Engineers select the correct turbocharger size by matching the turbine and compressor to the engine's duty cycle. Heavy-duty diesel turbochargers must maintain airflow at higher engine speeds. Larger units enable complete combustion during heavy loads. A turbocharger that is too small restricts exhaust flow at high engine speeds. A unit that is too large fails to build boost quickly at low speeds.

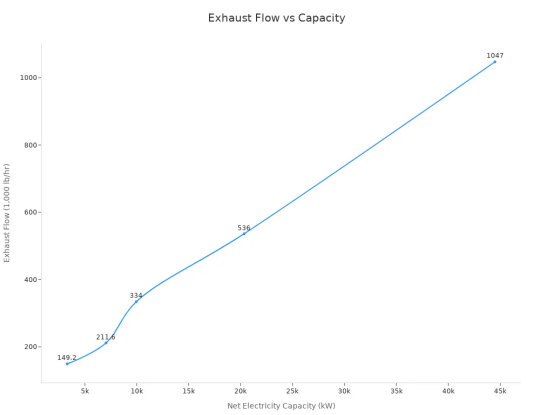

The relationship between power and exhaust flow determines turbine size. As net electricity capacity increases, exhaust flow rises proportionally. The table demonstrates this relationship:
Net Electricity Capacity (kW) | Exhaust Flow (1,000 lb/hr) |
3,304 | 149.2 |
7,038 | 211.6 |
9,950 | 334 |
20,336 | 536 |
44,488 | 1047 |
The same principle applies to diesel engines in heavy-duty trucks. Higher power output requires greater exhaust flow. The turbine must handle this flow without excessive back pressure. The compressor must supply enough intake air for complete combustion. Diesel engine performance depends on this precise matching. A heavy duty turbocharger factory builds these units to exacting standards.
Heavy-duty turbochargers handle high pressure ratios with ease. Manufacturers overbuild these units to withstand demanding conditions. Kaidi offers advanced two-stage turbocharging for these applications. This technology ensures efficient air compression across the full speed range. An optional variable geometry turbine optimizes airflow at every engine speed. The system delivers consistent boost and improves torque delivery. System efficiency improves with proper airflow management. Better airflow enhances combustion efficiency for complete fuel burning. The VGT expands the torque curve for better drivability. The engine has ample power for steep grades.
The materials used in turbocharger construction determine the unit's ability to survive sustained high-load operation. Turbine wheels face the most extreme conditions. Exhaust gas temperatures in heavy-duty diesel engines exceed 850°C. The turbine wheel must maintain its strength at these elevated temperatures.
Inconel 713C is a nickel-based superalloy used for turbocharger turbine wheels. This material offers outstanding high-temperature strength and oxidation resistance. Its creep resistance is superior to Inconel 718 at the highest temperature ranges. The maximum service temperature reaches approximately 950-1000°C.
Turbocharger wheels (for high-performance engines) - Good for very high temperature diesels.
High temperature reduces the mechanical strength of the alloy. Harmful carbides form at grain boundaries and weaken the structure. Engineers account for this degradation when designing turbine wheels. The alloy delivers the required performance within its operating limits.
Kaidi turbochargers feature reinforced rotor and bearing systems. These components withstand extreme temperatures and pressures. The bearing system maintains precise oil clearances for adequate lubrication. Synthetic oils with shear stability preserve oil film thickness. Vibration-damping features resist forces that cause premature wear at high speeds. Consistent oil flow manages heat transfer effectively. Controlled oil clearances prevent starvation and ensure a continuous lubricating film. This avoids metal-to-metal contact during sustained operation.
High-strength alloy materials resist thermal and mechanical stress. Tight assembly tolerances minimize excessive shaft movement. Proper seal clearances prevent oil migration and contamination. These decisions extend the unit's service life and improve engine efficiency. The alloy maintains strength under continuous power demands. The system achieves high operating efficiency across the speed range. This design delivers the durability that a commercial diesel turbocharger must provide for fleet operations.
The combination of correct sizing and robust materials allows reliable performance under sustained load. This design improves overall performance and fuel efficiency. Kaidi units deliver consistent torque and stable high-altitude operation. Power stays constant throughout the duty cycle.
Heavy-duty diesel turbochargers use two primary technologies to manage high-load airflow. A wastegate regulates boost pressure by diverting exhaust gas around the turbine wheel. When boost exceeds the set threshold, the wastegate opens. Exhaust bypasses the turbine. The system prevents overboost and maintains safe operating pressures. Wastegates provide a simple mechanical solution for boost control.
Variable geometry turbines offer more precise control. The adjustable vanes inside the turbine housing change position based on engine demand. At low engine speeds, the vanes close. This action restricts exhaust flow passing through the turbine. Restricting the flow increases exhaust gas velocity. Higher velocity spins the turbine faster. As a result, boost pressure builds earlier. The engine produces more torque sooner. VGT eliminates the delay associated with fixed geometry turbos.
Aspect | Fixed Geometry Turbo | VGT Turbo |
Exhaust housing | Fixed geometry | Adjustable vanes |
At low RPM | Limited exhaust flow, slow turbine speed, slow boost buildup | Vanes close, exhaust velocity increases |
Result | Turbo lag (delay) | Faster spool, earlier boost, more low-end torque |
Kaidi's VGT technology eliminates power lag under heavy load. The system enhances climbing and traction performance. Drivers experience usable power at lower RPM. Drivability improves when pulling heavy loads. The turbocharger delivers better response during acceleration. Power delivery becomes more efficient across the operating range.
A heavy duty turbocharger factory like Kaidi engineers these components for durability. The commercial diesel turbocharger must withstand continuous high-load demands. Robust materials ensure long-term reliability.
High-load operation creates two significant risks. Overboost occurs when the turbo delivers more boost pressure than the engine can safely handle. This condition triggers protective measures. The engine management system may intervene under hard acceleration. The system may enter limp mode to prevent damage. Drivers notice a whistling or siren noise under load. Knocking or pre-ignition indicates dangerously high cylinder pressure. Overheating often accompanies overboost events.
Symptom | Description |
Power cut under hard acceleration | The engine pulls then abruptly drops or jerks, often when climbing in a high gear; may require ignition cycling to restore power. |
Limp mode | Module deliberately limits power, making merging, overtaking, and towing unsafe. |
Whistling or siren noise under load | Noise rises with boost and stops abruptly when the module intervenes. |
Knocking or pre-ignition | Indicates the engine is being pushed past designed cylinder pressure; should not be continued. |
Signs of overheating | The engine and sometimes transmission overheating, with harsh shifting; on diesels, higher-than-normal exhaust gas temperatures. |
Misfiring | Occurs when combustion conditions are pushed outside their normal envelope. |
Additional stored codes | Companion codes often identify the cause; absence of related electrical codes suggests a mechanical problem. |
Compressor surge presents a different danger. This condition occurs when the compressor delivers more airflow than the engine can ingest. The airflow reverses through the compressor section. This creates a violent oscillation. The boost gauge bounces rapidly. Severe stress places extreme load on the turbine shaft and bearings. Repeated surge events can lead to shaft breakage from cyclic fatigue failure. Operating with a loaded trailer over hills and valleys can trigger surge.
Anti-surge systems prevent this damage. These systems automatically dump unwanted air to maintain stability.
A compressor anti-stall system is a compressor bleed system that automatically dumps away unwanted air to prevent compressor stalling. Other methods of stall prevention may include an anti-stall tip treatment of the casing.
Anti-surge valves open quickly and close relatively slowly. This timing prevents a second surge cycle. Typical opening time falls within 1 to 2 seconds. Closing takes 3 to 6 seconds. A fail-open design ensures the valve opens on air failure. Volume boosters with high flow capacity improve throttling speed.
Optimized exhaust gas recirculation works alongside these control systems. EGR reduces peak cylinder temperatures. This action improves engine efficiency. The system reduces fuel consumption. The diesel engine meets the latest emission regulations. Combined with precise boost control, EGR supports both efficiency and environmental compliance.
Modern boost control systems integrate wastegates, VGT, anti-surge valves, and EGR management. This coordinated approach maintains optimal turbocharger performance. Kaidi turbochargers incorporate these technologies for reliable operation. The result is sustained power output and long service life.
Sustained high-load operation drives exhaust gas temperatures to extreme levels. Thermal expansion stresses every component in the hot section. The turbine wheel, shaft, and housing all grow and contract with each cycle. This movement demands robust thermal management.
Sustained EGTs above 1300 degrees Fahrenheit should be approached with caution, as they can start to push the limits of component thermal tolerance, potentially causing severe damage to the turbocharger and other critical engine components.
Excessive heat weakens turbine blades over time. Cracks form at grain boundaries. Seals degrade and allow oil migration. Lubrication breaks down, which raises friction and wear. These conditions shorten turbocharger lifespan and lead to costly repairs.
Water-cooled bearing housings combat this problem. Coolant channels around the bearing chamber extract heat more efficiently than oil alone. Water achieves heat transfer coefficients of 3000–8000 W/m²K, compared with 500–1500 W/m²K for oil. This superior heat extraction lowers bearing temperatures by 15–30°C. Lower temperatures prevent oil coking and reduce sludge formation. A heavy duty turbocharger factory builds these passages into the housing to protect the commercial diesel turbocharger during continuous demand.
Engine oil quality determines turbocharger survival. The unit places heavy demand on oil for lubrication and cooling. Oil degrades faster under high heat and constant load. Fleet operators must follow strict service intervals.
Heavy-duty trucks that regularly tow or carry heavy loads might require oil changes as frequently as every 3,000 miles or 250 Engine Hours.
Inspecting for boost leaks protects performance and efficiency. A simple pressure test reveals hidden problems.
1. Let the engine cool, then remove the intake filter so the boost leak tester can be connected.
2. Seal vacuum lines and hoses connected to the intake pipe, including the PCV hose and crankcase vent line.
3. Connect a regulated compressed air source to the intake tract or boost leak tester, keeping pressure limited to about 5–7 psi.
4. Pressurize the intake tract and listen for hissing, which indicates a boost leak; also check whether pressure fails to build or hold.
5. Spray soapy water around suspect areas and watch for bubbles to confirm the leak location.
Every Kaidi unit undergoes rigorous durability and extreme-condition testing. This testing ensures ultra-long service life and a low failure rate. Kaidi turbochargers improve total cost of ownership by maintaining optimal boost pressure at all engine speeds. They improve torque output and fuel efficiency optimization. Fleet operators reduce fuel costs, downtime, and maintenance expenses. Regular oil changes, boost leak inspections, and EGT monitoring keep the engine at optimal performance.
Heavy-duty diesel turbochargers handle high-load operation through four mechanisms. First, airflow enhancement lets the diesel engine burn more fuel. Second, precise boost control maintains stable power across all speeds. Third, thermal management protects the turbocharger from extreme heat. Fourth, durable construction ensures the engine survives continuous demand. These systems work together. The engine delivers reliable torque and output.
Maintenance matters as much as design. Regular oil changes protect the turbocharger. Boost leak inspections preserve engine efficiency. Kaidi's OEM-level solutions and decades of experience deliver reliability. The engine performs at its best with proper care.
Fleet operators should inspect turbocharger systems regularly. They should consult manufacturer guidelines. They should explore Kaidi's lineup for their engine needs. This approach maximizes efficiency and performance.
